Features
1. Portability and Lightweight Design:
Electric models weigh ~8 kg, much lighter than bench machines (typically 130-175 kg).
Compact size facilitates easy transport and use in elevated, remote, or power-scarce environments.
2. Efficiency and Flexibility:
Electric models with auto-feeding thread rapidly (e.g., 15 seconds for 2" threads).
Operates without disassembling pipelines or in confined spaces, saving time and effort.
3. Cost-Effectiveness:
Manual versions allow individual die replacement, reducing maintenance costs; electric models use universal dies for easy procurement.
Low power consumption (1000W-1400W) with high ROI.
4. Versatility and Precision:
Compatible with various materials (galvanized, stainless steel, PP pipes), threading accuracy meets ISO 7 standards.
Electric models have forward/reverse switches and cooling systems
Specifications:
| Model | ETM32 |
| Diameter of pipe threader | M16-M32 |
| Motor | 2300W |
| Voltage | 220V |
| Threading speed | 26rpm |
| Applicable Pipe | Met |
| Packing dimension (LXWXH) | 580x135x305mm |
| (N.W./G.W. | 8.3/17.5kg |

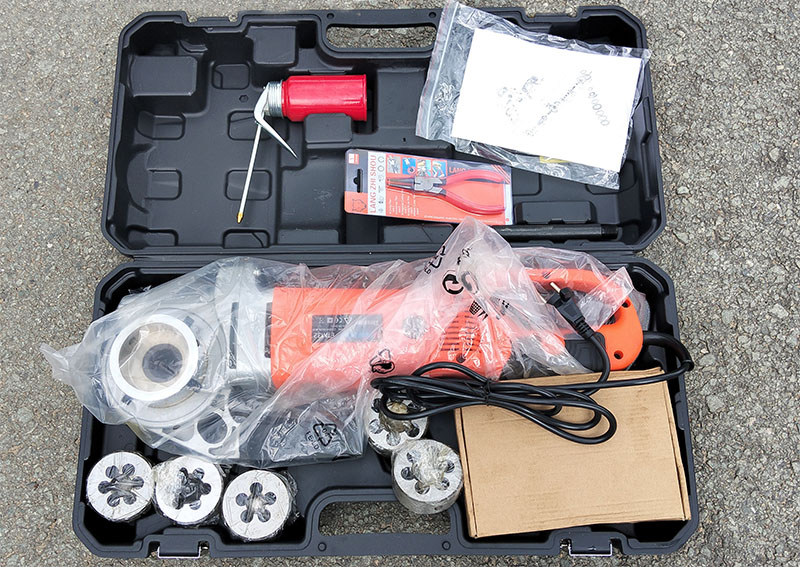

Standard Accessories:
- Pipe clamp for portable pipe threader
- Oil gun
- Carbon brush
- Complete set
